BX Style Ring joint Gaskets


Style BX pressure energized Ring Joint Gaskets are manufactured in accordance with API 6A and are designed for use on pressurized systems up to 20,000 PSI.

When correctly fitted, the style BX Ring Joint Gasket allows virtual surface-to-surface contact of the flange faces, which means that the Ring Joint Gasket is fully trapped on both the inner and outer diameters.

All BX Ring Joint Gasket incorporate a pressure balance hole to ensure equalization of pressure that may be trapped in the grooves.
Tolerances: ( Inches): '

» Width of Ring .......................................+0.008,-0.000
» Hole Size ..............................................±0.02
» Height of Ring ......................................+0.080,-0.000
» OD of Ring ............................................+0.000,-0.006
» Angle of 23° .........................................±1/4°

One pressure passage hole required per ring on centerline. A plus tolerance of 0.008 inches for width of ring and height of ring is permitted, provided the variation in width or height does not exceed 0.004 inches throughout its entire circumference.



NOTE: Radius of the ring shall be 8% to12% of the ring height

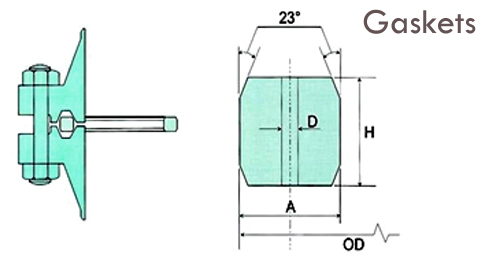

STYLE BX RING JOINT GASKET DIMENSION TABLE



RING NO.

PRESSURE CLASS RATINGS (psi )

Outside Diameter of Ring

Height of Ring

Width of Ring

Hole Size

Gasket Weight lbs.

5000

10000

15000

20000

Nominal Pipe Size

OD

H

A

D

for API 6BX

BX150

-

-

-

-

2.842

0.366

0.366

0.06

0.295

BX151

-

1 13/16

1 13/16

1 13/16

3.008

0.379

0.379

0.06

0.337

BX152

-

2  1/16

2  1/16

2  1/16

3.334

0.403

0.403

0.06

0.425

BX153

-

2  9/16

2  9/16

2  9/16

3.974

0.448

0.448

0.06

0.632

BX154

-

3  1/16

3  1/16

3  1/16

4.600

0.488

0.488

0.06

0.875

BX155

-

4  1/16

4  1/16

4  1/16

5.825

0.560

0.560

0.06

1.22

BX156

-

7  1/16

7  1/16

7  1/16

9.367

0.733

0.733

0.12

4.14

BX157

-

9

9

9

11.593

0.826

0.826

0.12

6.55

BX158

-

11

11

11

13.860

0.911

0.911

0.12

9.60

BX159

-

13  5/8

13  5/8

13  5/8

16.800

1.012

1.012

0.12

14.41

BX160

13 5/8

-

-

-

15.850

0.938

0.541

0.12

6.75

BX161

-

-

-

-

19.347

1.105

0.638

0.12

-

BX162

16¾

16¾

-

-

18.720

0.560

0.560

0.06

-

BX163

18¾

-

-

-

21.896

1.185

0.684

0.12

-

BX164

-

18¾

18¾

-

22.463

1.185

0.968

0.12

-

BX165

21¼

-

-

-

24.595

1.261

0.728

0.12

-

BX166

-

21¼

-

-

25.198

1.261

1.029

0.12

-

BX167*

-

-

-

-

29.896

1.412

0.516

0.06

-

BX168

-

-

-

-

30.128

1.412

0.632

0.06

-

BX169**

-

-

-

-

6.831

0.624

0.509

0.06

-

BX170

-

-

-

-

8.584

0.560

0.560

0.06

-

BX171

-

-

-

-

10.529

0.560

0.560

0.06

-

BX172

-

-

-

-

13.113

0.560

0.560

0.06

-

 BX303

-

-

-

-

33.573

1.494

0.668

0.06

-

Dimensions in Inches.

 * BX167 is suitable for 26¾ Nominal Pipe Size 2,ooo psi rating.
** BX169 is suitable for 5¾ Nominal Pipe Size 10,000 psi rating.
   BX168 is suitable for 26¾ Nominal Pipe Size 3,000 psi rating.
   BX303 is suitable for 30 Nominal Pipe Size 2,000 and 3,000 psi rating.



STYLE BX SELECTION TABLE



NOMINAL PIPE SIZE
PRESSURE CLASSES
API 6BX
2000#
3000#
5000#
10000#
15000#
20000#
1 11/16"
-
-
-
BX-150
BX-150
-
1 13/16"
-
-
-
BX-151
BX-151
BX-151
2 1/16"
-
-
-
BX-152
BX-152
BX-152
2 9/16"
-
-
-
BX-153
BX-153
BX-153
3 1/16"
-
-
-
BX-154
BX-154
BX-154
4 1/16"
-
-
-
BX-155
BX-155
BX-155
5 1/8"
-
-
-
BX-169
-
-
6 5/8"
-
-
-
BX-170
BX-170
-
7 1/16"
-
-
-
BX-156
BX-156
BX-156
8 9/16"
-
-
-
BX-171
BX-171
-
9"
-
-
-
BX-157
BX-157
BX-157
11"
-
-
-
BX-158
BX-158
BX-158
11 5/32"
-
-
-
BX-172
BX-172
-
13 5/8"
-
-
BX-160
BX-159
BX-159
BX-159
16 3/4"
-
-
BX-161  BX-162
BX-162
BX-162
-
18 3/4"
-
-
BX-163
BX-164
BX-164
-
21 1/4"
-
-
BX-165
BX-166
-
-
26 3/4"
BX-167
BX-168
-
-
-
-
30"
BX-303
BX-303
-
-
-
-
